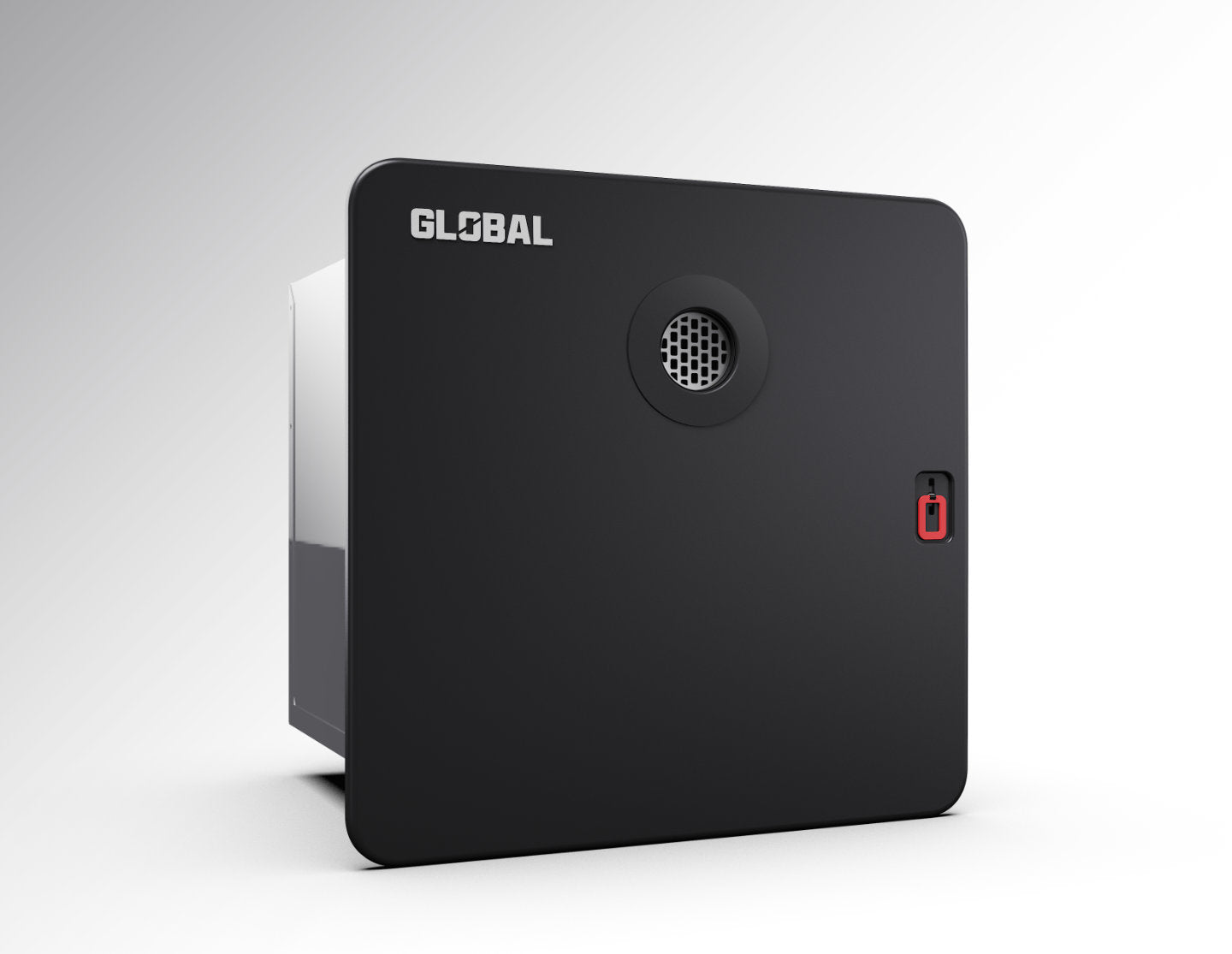

Introducing the WCG146 Instant Hot Water System
Experience Instant, Efficient, and Worry-Free Hot Water
Upgrade your hot water system with our compact, lightweight, and tankless solution designed for maximum performance and efficiency. Delivering instant hot water on demand, this system uses up to 90% less energy than traditional storage systems, saving you money while reducing your carbon footprint.
Engineered to fit standard cut-outs, installation is seamless and highly flexible thanks to its 45.5MJ/h rating, which ensures optimal gas pipe sizing, superior temperature stability, and excellent performance even in low ambient temperatures.
Features
Instant Hot Water
Easy Installation - Standard plumbing
User friendly control panel
Hinge door for easy access
Modern Design
Integrated gas regulator
Technical Specifications
| Model | WCG146 |
|---|---|
| Dimensions (WxDxH) | 390 x 390 x 418mm |
| Cut out size (WxD) | 330 x 330mm |
| Net Weight | 9.3kg |
| Power Input | DC 12V, 36 W |
| Energy Consumption | 45.5MJ/h |
| Fuel | Universal LPG |
| Inlet Gas Pressure | 2.75 Kpa |
| Water Operating Pressure | 0.8 Mpa Max |
| Min. Water work pressure | 0.15 Mpa |
| Water Temperature | 35°C to 50°C |
| Capacity | 5.8 L/min (Temp rise 25 °C ) |
| Heat Output | 9.8kW |
